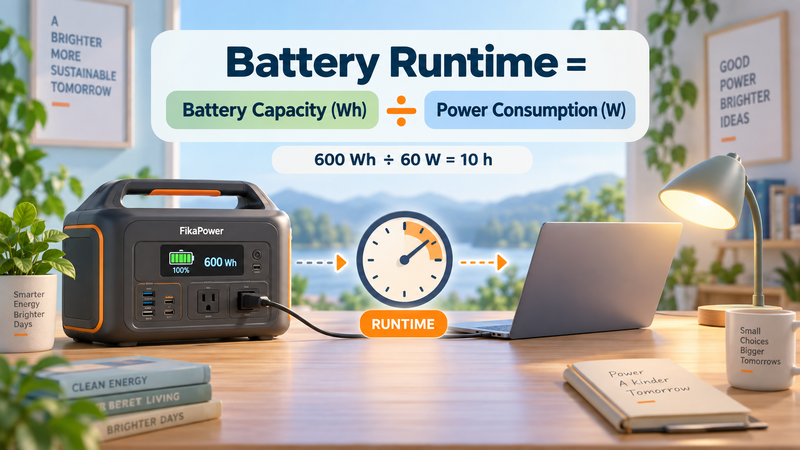

Battery Runtime Formula

Battery capacity tells you how much energy is stored, but most people ultimately want to know something more practical: how long will the battery actually run a device? The basic battery runtime formula is simple, but real-world results depend on usable capacity, efficiency and the way the connected device consumes power.

If you need the broader context behind mAh, Ah, Wh and battery capacity specifications, start with this complete battery capacity guide: https://medium.com/@volodymyrzh/battery-capacity-explained-mah-wh-amp-hours-decoded-1dc676be5a38

The Basic Battery Runtime Formula

When battery capacity is expressed in watt-hours and the device's power consumption is expressed in watts, theoretical runtime can be calculated as:

Runtime (hours) = Battery capacity (Wh) ÷ Power consumption (W)

For example, imagine a battery rated at 1,000 Wh powering a device that continuously consumes 100 W:

1,000 Wh ÷ 100 W = 10 hours

The theoretical runtime is therefore 10 hours. This calculation works because a watt-hour represents energy, while watts describe the rate at which that energy is being used. If you want a deeper explanation of the energy unit itself, see: https://digitalowl.fika.bar/what-is-a-watt-hour-wh-explained-simply-01M2GM471S7BVV7BQ4R37DEEAP

The formula can also be rearranged mentally to show why power consumption matters so much. A 1,000 Wh battery could theoretically run a 50 W load for 20 hours, a 200 W load for 5 hours or a 500 W load for only 2 hours.

Theoretical Runtime vs Real-World Runtime

The simple formula assumes that every watt-hour printed on the battery label reaches the connected device. Real systems are usually less straightforward. Some energy may remain unavailable because of battery-management limits, reserve capacity, inverter conversion losses, wiring losses or other system behaviour.

That means rated capacity and usable capacity are not always identical. This distinction is explained in more detail here: https://digitalowl.fika.bar/rated-capacity-vs-usable-capacity-what-s-the-difference-01M2GQ5Y5KA68T9JHJQKWPD6TE

Suppose a portable battery is rated at 1,000 Wh but only 900 Wh is available for the planned discharge range. If the relevant conversion path is assumed to operate at 90% efficiency, the illustrative energy reaching the load becomes:

900 Wh × 0.90 = 810 Wh

For a constant 100 W load:

810 Wh ÷ 100 W = 8.1 hours

So a specification that produces a theoretical 10-hour result may give an estimated practical runtime closer to 8.1 hours under those particular assumptions.

These percentages are only examples. There is no universal efficiency factor that can safely be applied to every battery, inverter or portable power station.

A More Practical Runtime Formula

When you have reasonable estimates for usable energy and system efficiency, the calculation can be written as:

Estimated runtime = Usable battery capacity (Wh) × Efficiency ÷ Average load (W)

For example:

• Usable battery energy: 720 Wh

• Estimated system efficiency: 92%

• Average device consumption: 60 W

First calculate the energy expected to reach the load:

720 Wh × 0.92 = 662.4 Wh

Then calculate runtime:

662.4 Wh ÷ 60 W = 11.04 hours

The result is an estimated runtime of roughly 11 hours. It should still be treated as an estimate rather than a guaranteed operating time because both battery behaviour and device consumption can change during use.

Be careful not to subtract the same loss twice. If a manufacturer already gives a measured usable AC output figure, for example, applying another assumed inverter-efficiency deduction may unnecessarily underestimate runtime.

What If the Device Does Not Use Constant Power?

Many appliances do not draw the same number of watts continuously. Refrigerators cycle compressors on and off, laptops change consumption with workload and screen brightness, and power tools can move rapidly between idle and high-load conditions.

In these cases, runtime should normally be based on average power consumption, not simply the device's maximum wattage. The previous guide on calculating energy consumption in watt-hours explains how power and operating time can be combined when loads vary: https://digitalowl.fika.bar/how-to-calculate-energy-consumption-in-watt-hours-01M2JV4C868ADYBRWME82PGTB6

Imagine a device that can reach 80 W but averages only 35 W across normal operation. With 900 Wh of energy available to the load:

900 Wh ÷ 35 W ≈ 25.7 hours

Using the maximum 80 W figure instead would predict only:

900 Wh ÷ 80 W = 11.25 hours

Neither number is automatically correct without understanding how the device actually operates. Maximum power is important for determining whether the battery can support the load, while average power is generally more useful for estimating how long that load can operate.

How to Make a Better Battery Runtime Estimate

A useful runtime calculation starts with consistent units and realistic assumptions. Before relying on the result, check the following:

• Use battery energy in Wh, not mAh or Ah alone.

• Use the device's realistic average power in watts.

• Distinguish rated capacity from usable capacity.

• Account for conversion losses only when they have not already been included.

• Treat variable-load appliances differently from constant loads.

• Leave some margin when runtime is critical rather than planning around the exact calculated limit.

The basic relationship remains simple:

Battery Wh ÷ Load W = Runtime in hours

That formula gives you the theoretical starting point. A useful real-world estimate comes from replacing ideal numbers with realistic usable energy, efficiency and average consumption.

Battery runtime is therefore not a separate specification hidden somewhere inside a battery. It is the result of the relationship between how much usable energy the battery can provide and how quickly the connected device consumes it.
